Anaplan Application Framework

How deployment works, the 4 generated models, and the configuration question flow

Module 1Platform Foundations30 min

📖 Tell What AAF Does The Application Framework provisions, generates, and manages upgrades of all 4 IFP models from a single configuration session.

👁 Show Instructor Demo Facilitator opens the Application Framework and shows the question flow structure before answering any questions.

✅ Do Explore the Wizard Open the Application Framework in your workspace. Navigate to the Top-Level Questions — identify which dimensions are optional vs. mandatory.

What the Application Framework Does

Generates all 4 IFP models (Admin, FP, HC, CE) based on configuration answers
Provisions UX pages, modules, lists, actions, and ADO links automatically
Enables upgrades — future versions deployed centrally without manual rebuilds
Enforces constraints — validates configuration choices (e.g., 8-dimension limit)

The Four Generated Models

Model	Purpose	Always Generated?
Admin	Central configuration layer — source-to-planning mappings, metadata	Yes — always
Financial Planning (FP)	Revenue/COGS, OpEx, Balance Sheet, Cash Flow, Top-Down, Reporting	Yes — always
Headcount (HC)	Job-level workforce planning and cost calculations	Yes — delete if choosing GL-level option
Capital Expense (CE)	Asset planning, depreciation, disposal modeling	Yes — delete if choosing GL-level option

⚠ Cannot Exclude Models from Generation

The Application Framework always generates all 4 models. If you choose GL-level planning for HC or CapEx instead of the dedicated model, the model is still generated — you must delete it manually after generation.

Configuration Question Structure

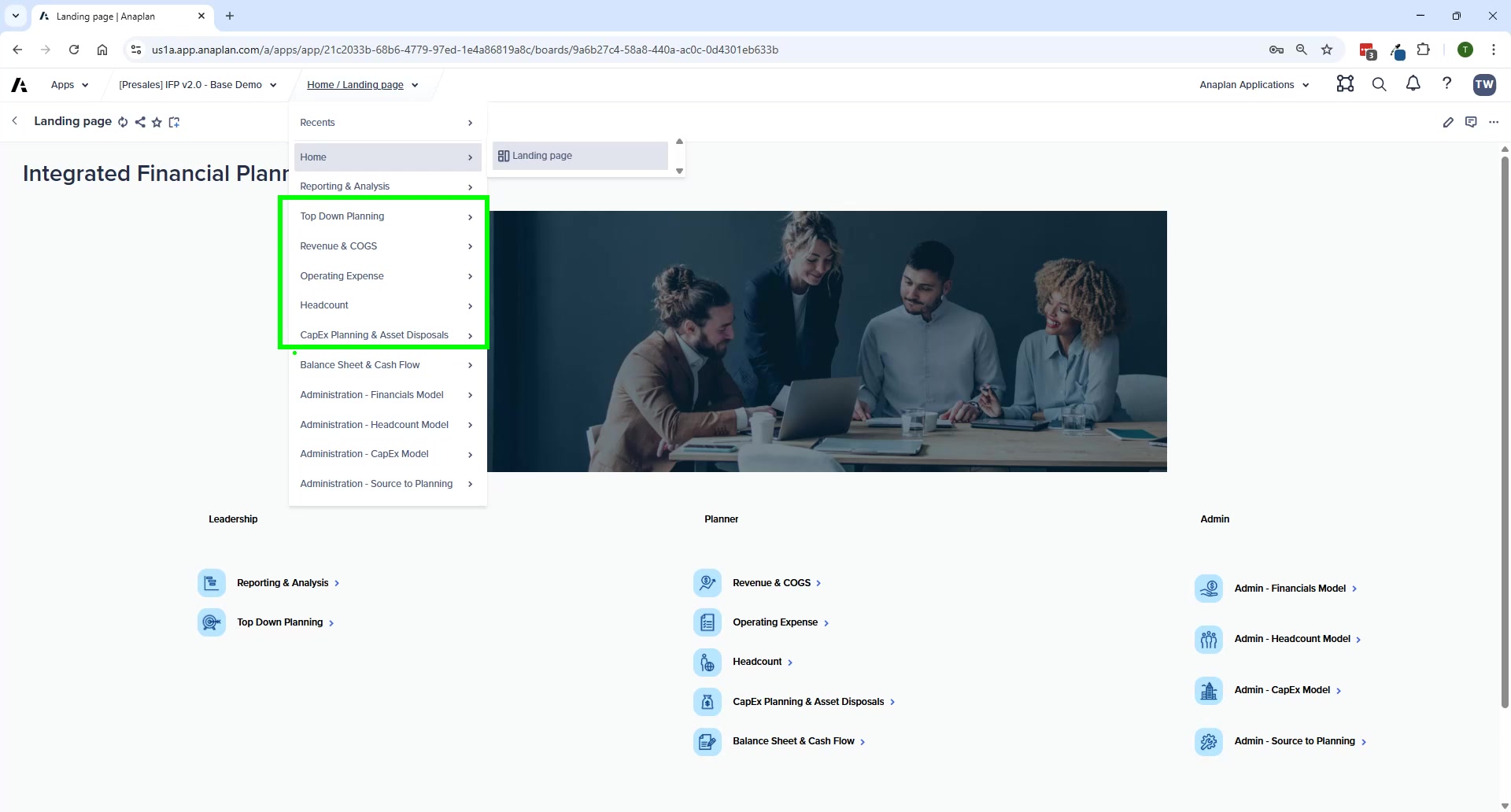

IFP Application Framework — Applications URL landing page with available applications listed — Application Framework entry point — navigate to the Applications URL in your tenant; IFP appears as a deployable application once provisioned

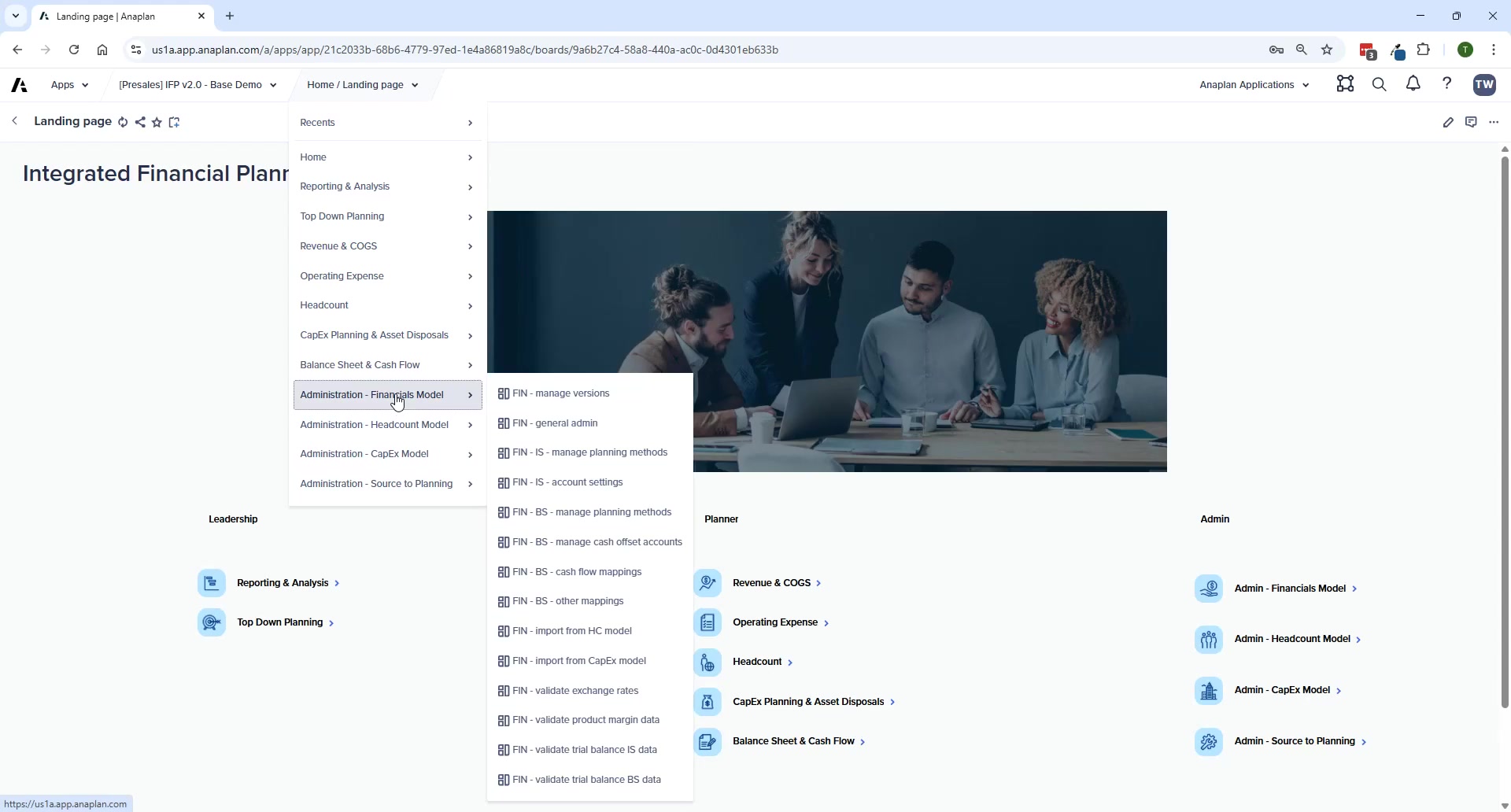

IFP v2.0 UX — page navigation structure showing module categories — Generated UX navigation — after generation, the sidebar shows all configured modules; hidden modules do not appear here

The wizard has two layers:

Top-Level Questions — define foundational structure across all 4 models: which dimensions to include, which modules to deploy, multi-currency, headcount approach, CapEx approach
Model-Specific Questions — fine-tune each model: FP planning scope, HC settings, CE settings

Between the two layers: the Hierarchy Configuration screen — where you set level counts and rename each hierarchy before generation.

Hierarchy Configuration

Add, delete, or rename hierarchy levels across all models at once
Changes propagate automatically to all models where the hierarchy is used
Minimum 2 levels, maximum 8 levels per model
Level count shown = combined levels across all selected models (Entity at 3 levels in FP + HC + CE = 9 total)

⚠ Naming Convention Is Critical

Use the EXACT same name in the configuration question response AND the hierarchy rename. A mismatch causes generation failures where modules and line items won't be renamed correctly throughout the model.

After Generation

Generation is the starting point — a significant set of post-generation tasks are required before the application is usable. See Post-Generation Checklist for the full list.

ℹ Known Generation Issues

The Application Framework has documented known issues — ADO links that fail to generate, UX elements that don't generate correctly, and naming inconsistencies. All have workarounds. None are blockers — plan for them in your project schedule.
